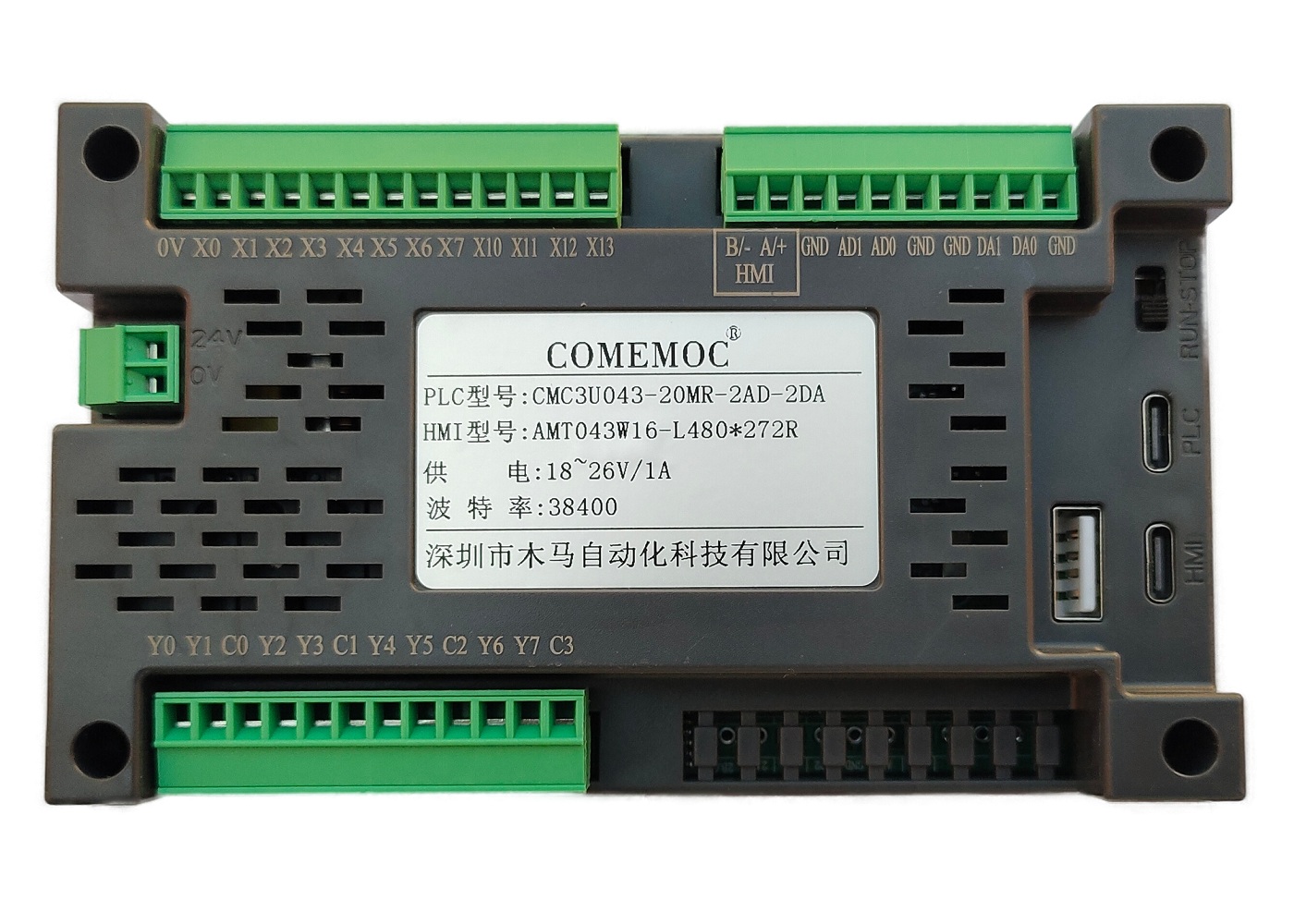

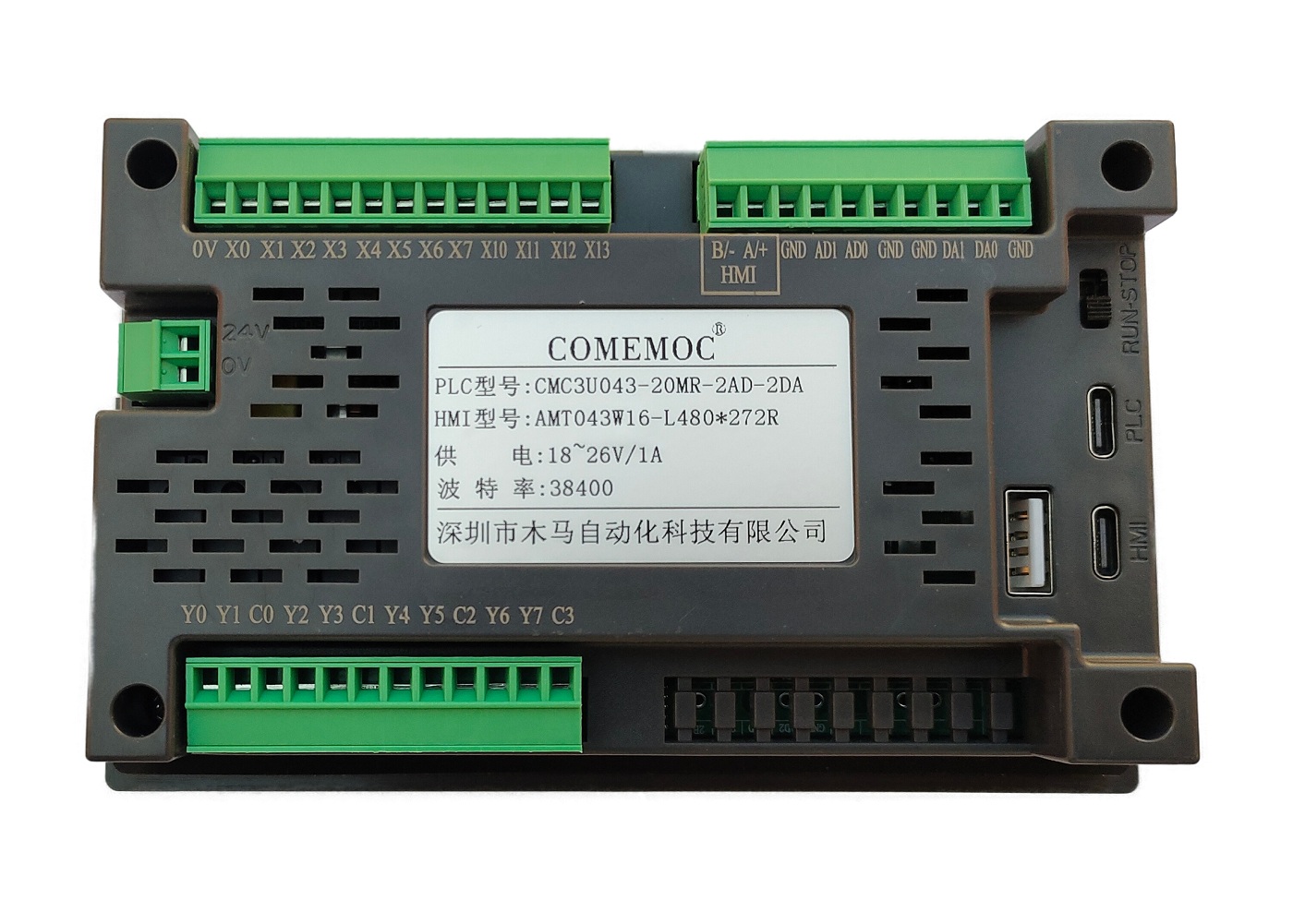

CMC3U043-20MR-2AD-2DA Integrated PLC and HMI

PLC

• .Model :CMC3U-20MR
• Power Suppply :DC24V
• .Program :8000 steps
• Input Point X Component :X0-X13, 12 input, NPN type.X0-4 high- counting input port 20KHz. 4 channel single phase counting or  2 channel AB channel counting
• Output Point Y Component :Y0~Y7 8 Relay output. <250VAC,30VDC Maximum current is 2A.
• Analog Input :2 channels 0~10V (can be changed to 0-20mA ) , 12-bit , read with RD3A
• Analog Output:2 channels 0~10V  analog output, 12-bit , Write with WR3A
• Software :Mitsubishi GXWorks2

HMI

• Model : AMT043W16-L480*272R
• Display size(inch) : 4.3 inch (16:9)TFT LCD
• Dimension (mm) : 142*90.5*37
• Storage : 64MB NAND Flash
• Memory: 32MB DDR2
• CPU : 600MHz ARM9
•  Upload & Download  port: Type-C cable, USB flash drive
• Communication  port: RS485 hmi port
• Voltage/Power :  DC24V (voltage range: DC22V~26V) 4W
• Protection level : The front board is in line with IP65 and the back of the fuselage is in line with IP20
• Software : CMC standard HMI software (HMI Studio 5.1)
