GT-070-32MT-8PT-G: 7″ HMI, 32 transistor outputs, 4 high-speed counters, 8 PT100 inputs, 16 IO points, 4G/WIFI, USB/Ethernet, IP65, robust design.
- Transistor Outputs
- Integrated Graphic Configuration, Ladder Logic Programming
- Up to 4 High-Speed Counters, Supports 4 Channels of 200KHz Pulse Output
- Expandable to 8 Temperature Inputs (PT100)
- I/O Plug-ins for 16 IO points
- 8 PT100 Inputs
- 4G/WIFI Module Support

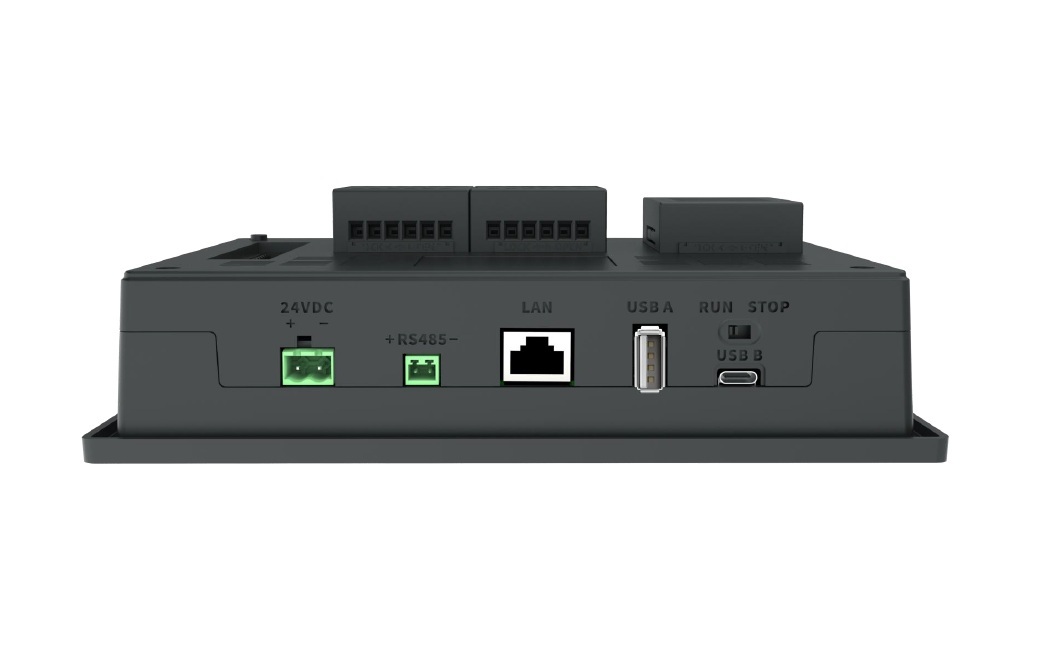

- USB, Ethernet, and USB Drive for Configuration Updates
- Hardware:
- Dimensions: 204x148x45 mm
- Mounting Hole Size: 192×138 mm
- Weight: 738g
- Material: Engineering Plastic ABS+PC

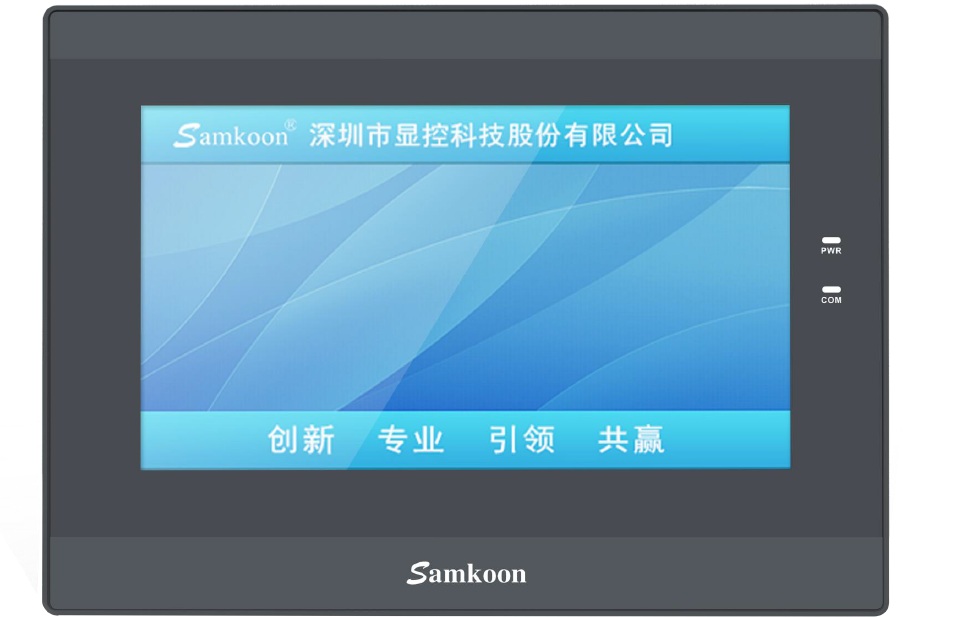

- Display:
- 7″ (16:9), 1024×600 pixels
- 4-wire High Precision Touchpad
- LED Backlight, 400:1 Contrast, 450cd/㎡ Brightness
- Memory/CPU:
- 128MB DDR, Cortex A7 1GHz Dual-core
- Testing/Certifications:
- Dielectric Strength: 1000V AC, 1 min
- Electrostatic Test: ±6kV
- FCC: Class A, CE: EN55032/EN55035
- IP65 Protection (Front Panel)
- Input/Output:
- Digital Inputs: 16, Transistor Outputs: 16 (Including 4 Channels of 200KHz High-Speed Pulse Output)
- Analog Input/Output: Expandable to 8 each (PT100 Inputs: 8)
- Power Supply:
- DC24V±15%, Network Interface, USB Ports
- Environmental:
- Operating Temp: -20°C~55°C
- Operating Humidity: 5~95%RH (Non-condensing)
- Vibration Resistance: 10～25HZ (2G/30 minutes XYZ)
- Software:
- Programming: SKTOOL7.1
