Product Features
-
Transistor Output
-
Integrated Screen Configuration and Ladder Diagram Programming
-
High-Speed Counting and Pulse Output: Supports up to 2 channels of 200 kHz high-speed counting and up to 4 channels of 200 kHz high-speed pulse output
-
Expandable Temperature Input: Supports up to 8 channels via plug-in modules (compatible with thermocouple/PT100)
-
I/O Expansion: Up to 16 additional I/O points via plug-in modules
-
Supports 4G / WiFi Module
-
Configuration Updates: Supports USB download, Ethernet download, and USB flash drive updates
-

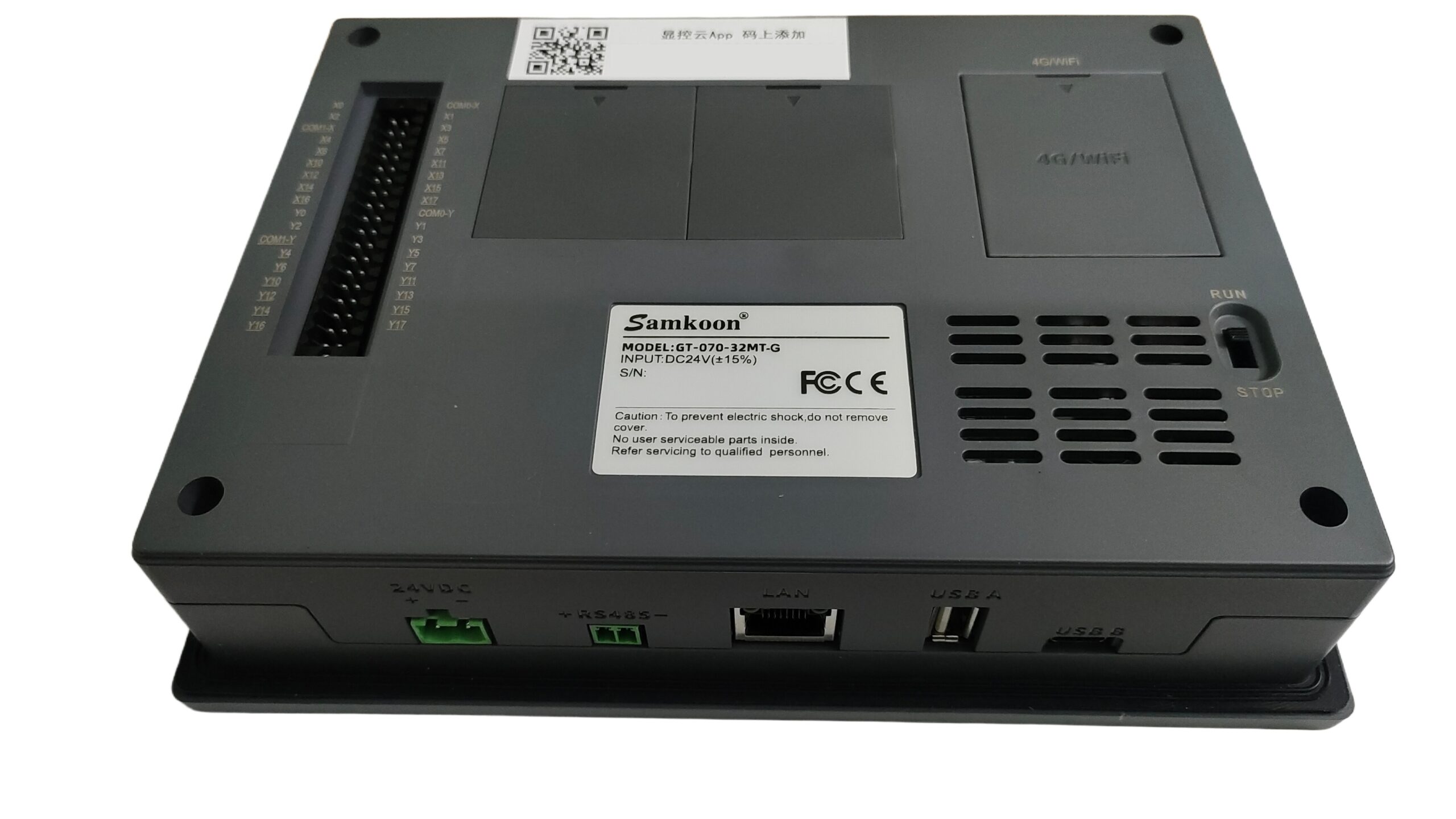

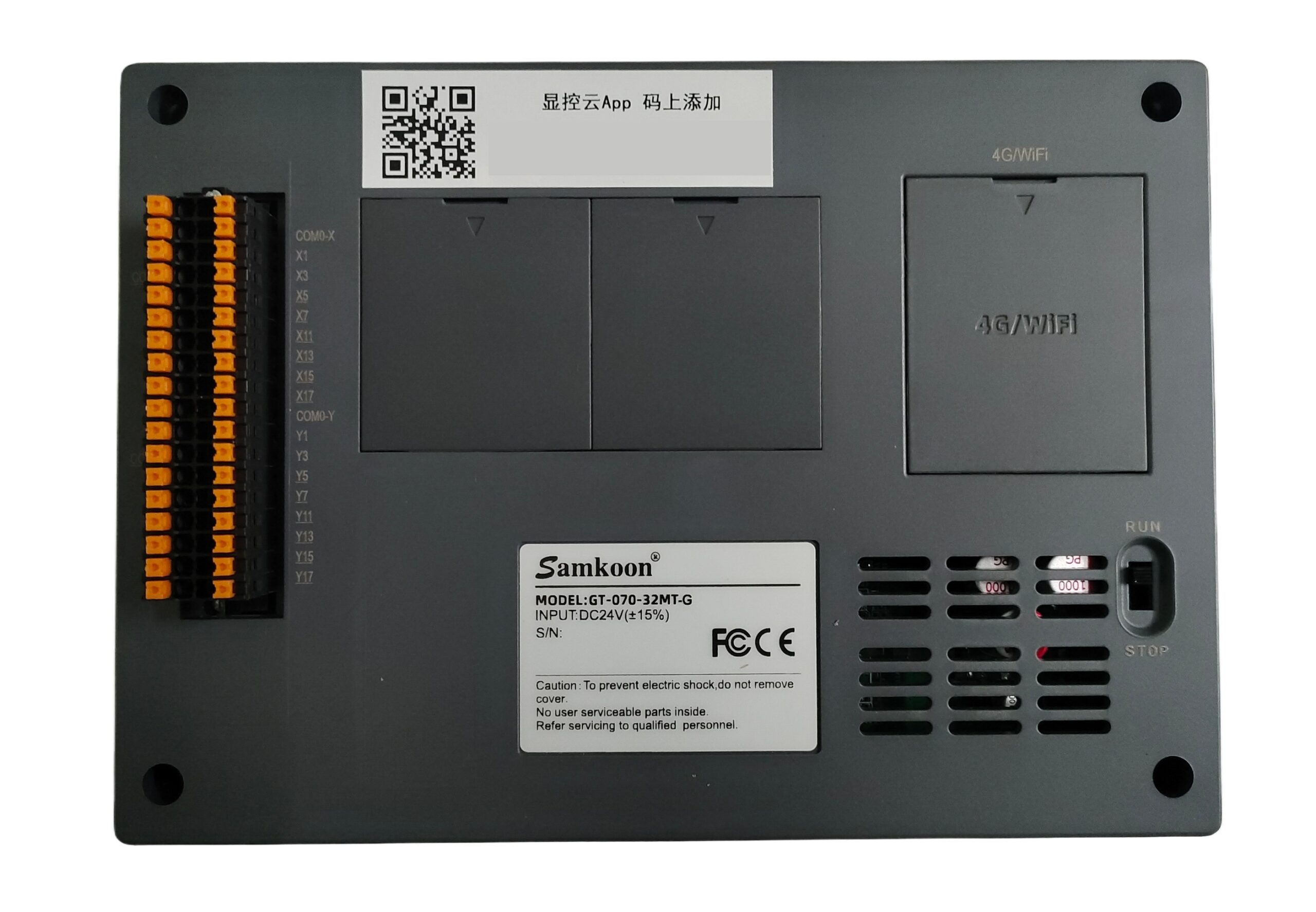

Hardware Structure
-
Overall Dimensions: 204 × 148 × 45 mm
-
Mounting Cutout Dimensions: 192 × 138 mm
-
Weight: 700 g
-
Housing Material: Engineering plastic ABS + PC
Display
-
Display Size: 7″ (16:9)
-
Resolution: 1024 × 600 pixels
-
Touch Panel: 4-wire high-precision resistive touchscreen
-
Display Colors: 16.77 million
-
Backlight Module: LED
-
Contrast Ratio: 400:1
-
Brightness: 450 cd/㎡
Product Features & Certifications
-
Memory: 128 MB DDR
-
CPU: Cortex-A7 dual-core, 1 GHz
-
Dielectric Strength Test: 1000V AC, 1 minute
-
ESD Test: ±6 kV
-
FCC Compliance: Class A
-
CE Certification: Conforms to EN55032 and EN55035 standards
-
Protection Rating: IP65 (front panel)
Input / Output
-
Digital Inputs: 16 channels, including 4 high-speed counters (up to 200 kHz)
-
Digital Outputs: 14 transistor outputs, including 4 high-speed pulse outputs (up to 200 kHz)
-
Analog Inputs: Expandable up to 8 channels via plug-in module
-
Analog Outputs: Expandable up to 8 channels via plug-in module
Power Interface
-
Power Supply: DC 24V ±15%
-
Power Consumption: /
Network & Communication Interfaces
-
Network Interface: Yes
-
USB Download Port: Yes
-
USB Host Port: Yes
-
PLC Communication Port: RS485 (1)
-
HMI Communication Port: RS485 (1)
Environmental Conditions
-
Operating Temperature: -20°C ~ 55°C (no freezing)
-
Operating Humidity: 5–95% RH (non-condensing)
-
Vibration Resistance: 10–25 Hz (XYZ direction, 2G / 30 min)
Software
-
Programming Software: SKTOOL 7.1
-
