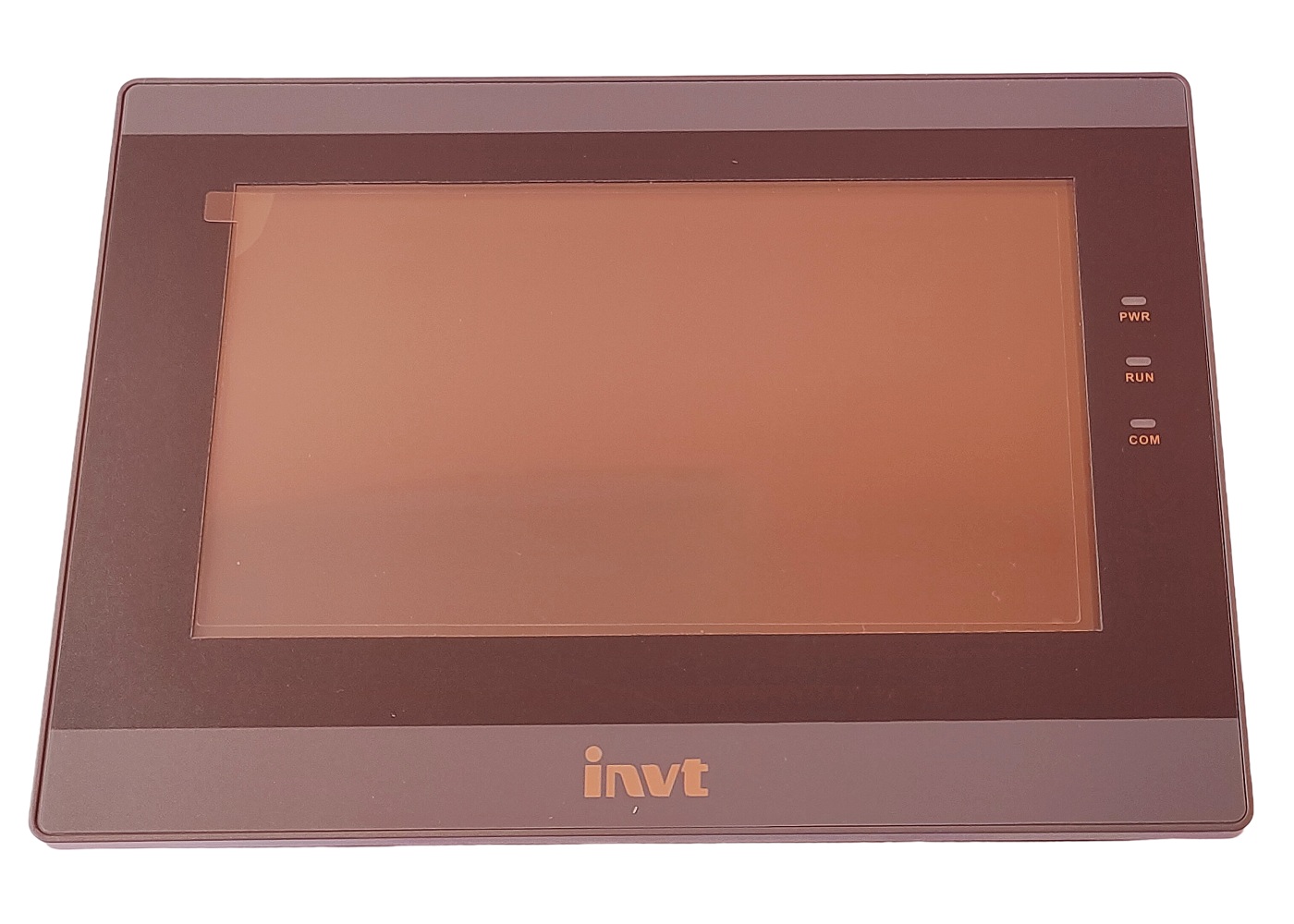

INVT HMI VS-070QS

• Display size  & Resolution : 7 inch  & 800*480
• Backlight Type: LED backlight
• Screen Material : ITO
• Colour Depth : 24 bits
• Color: 16.77 million true colors
• Bright: 450 cd/㎡
• Touch panel: 4-wire high accuracy touch screen
• Backlight life: 20000 hours
• CPU : Cortex-A7 1Ghz(dual core)
• Memory & Flash : 128MB DD3 & 128MB Flash

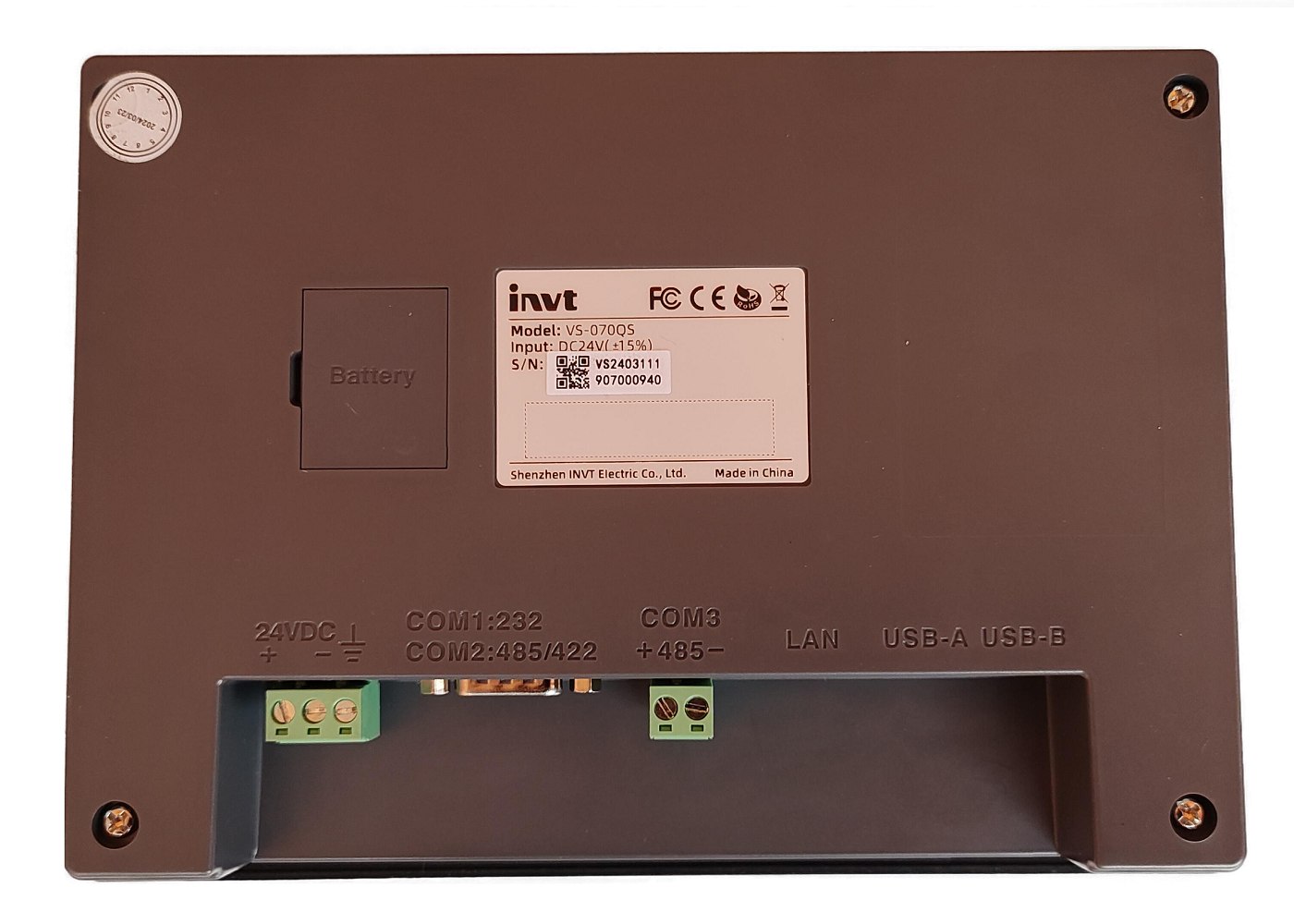

• Serial interface COM1: RS232
• Serial interface COM2: RS485/422
•  Serial interface COM3: RS485
• Ethernet : Support
• USB data transfer port : USB A Port (Pen drive)
• USB download port : USB B port
• Rated voltage :  DC12V~24V ±15%
• Rated power : 4 W
• Operating temperature : -20~55℃
• Operating humidity : 5~95%RH (no condensation)
• Compatibility: Compliant with FCC
• CE certification: Complies with EN55032 and EN55035 standards
• Dimension (mm) : 203*145*35
•  Mounting dimension (mm) :  192*138
• Weight – 0.7 Kg
• Supports most of the PLCs like Delta ,Mitsubishi, Omron, AB, Siemens, ABB, Xinje etc.,
